Features
● Water-proof design with IP-66 Protection level.
● Integrated with splice cassette and cable management rods.
● Manage fibers in a reasonable fiber radius condition.
● Easy to maintain and extend the capacity.
● Fiber bend radius control more than 40mm.
● Suitable for the fusion splice or mechanical splice.
● 1*16 Modular Splitter can be installed as an option.
● Efficient cable management.
● 2 ports cable entrance for feeder cable and 1 ports for 16 drop cable.
Configuration
|

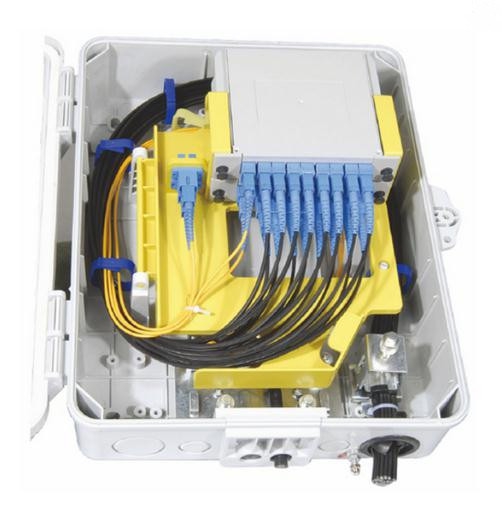

Fiber Access Terminal FAT-16E Parameter |
||||||
|
Material |
Size |
Max Capacity |
Installation Size |
Weight |
Color |
|
|
PC+ABS |
AxBxC(mm) |
SC |
Modular PLC |
DxE(mm) |
1.5kg |
White |
|
330x260x130 |
16 Ports |
1x16(SC) |
200x260 |
|||
Standard Accessories
Splice cassette and cable management tool, installation nuts and bolts, protection sleeves, hose clamp, rubber steal for cable entrance.
Optional Accessories
Pole ring, Extra lock and key
